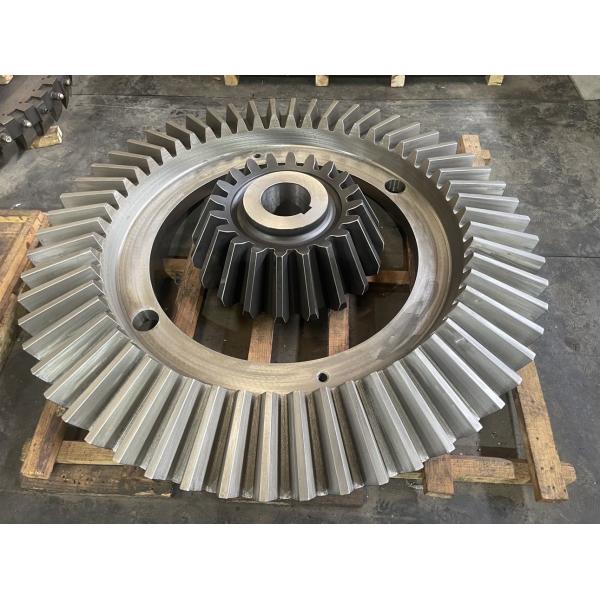

Crusher custom large module bevel gear high quality steel casting large bevel gear
Product Description:
Our enterprise vision is centered around enhancing the efficiency and functionality of machines across a variety of industries. We aim to achieve this by providing precision gear solutions that optimize the performance of machinery to its fullest extent. Our commitment to innovation and technological advancements means that we are continuously developing cutting-edge technologies that push the boundaries of what is possible in machine design and engineering.
In addition to precision gear solutions, we are also dedicated to the development of intelligent transmission technologies that provide tangible benefits to industries and society as a whole. Our goal is to provide solutions that empower human industry in a meaningful way, while also promoting sustainable and environmentally-friendly practices with an eye toward the future.
Features:
- Product Name: Bevel Gear
- Surface Finish: Ground
- Backlash: 0.005 Inches
- Face Width: 0.5 Inches
- Mounting Type: Shaft
- Hardness: HRC 58-62
This product is a high-quality Spiral Bevel Gear that features a precise ground surface finish. The backlash is minimal at 0.005 inches, making it an excellent choice for applications that require precision. The face width is 0.5 inches, which provides ample support and stability. The mounting type is shaft, which allows for easy installation. Additionally, the Bevel Gear has a hardness rating of HRC 58-62, ensuring its durability and longevity.
Technical Parameters:
| Technical Parameter |
Value |
| Face Width |
0.5 Inches |
| Pitch Diameter |
2.5 Inches |
| Surface Finish |
Ground |
| Mounting Type |
Shaft |
| Tooth Profile |
Straight |
| Module |
1.5 |
| Material |
Steel |
| Pressure Angle |
20 Degrees |
| Load Capacity |
1000 Lbs |
| Teeth Number |
15 |
This Bevel Gear is a Straight Tooth, Ground Surface Finish, Steel material, with a 20 Degree Pressure Angle and a 1.5 Module. It has a Face Width of 0.5 Inches and a Pitch Diameter of 2.5 Inches. The Load Capacity is 1000 Lbs and it has 15 Teeth. Its Mounting Type is Shaft.
It is not a M1, M3, M4 or M5 gear, but a Spiral Bevel Gear. The Z-number of its teeth is not provided, but it has a Pressure Angle of 20 Degrees and a Module of 1.5. Therefore, it can be estimated that the Z-number is between Z20, Z25, and Z30.
Applications:
Rail Traffic
The term "Rail Traffic" refers to the movement of trains along railroad tracks. This phenomenon is integral to modern transportation systems and is used in various ways including for passenger transportation, freight transportation, and high-speed rail systems such as bullet trains and trains. The bogie components of these high-speed rail systems rely on advanced technology to ensure smooth movement and efficient operation.
Cement
In the cement manufacturing process, powerful machines are used to grind the raw materials into a fine powder before being turned into cement. This process relies on robust machinery such as cement mill reducers which are necessary to reduce the size of the materials. Some of the most commonly used cement mill reducers include FLENDER-710 and MAAG-200. These gearboxes are essential components in the process and can be used to replace the spiral bevel gear of FLENDER and MAAG for optimal performance.
